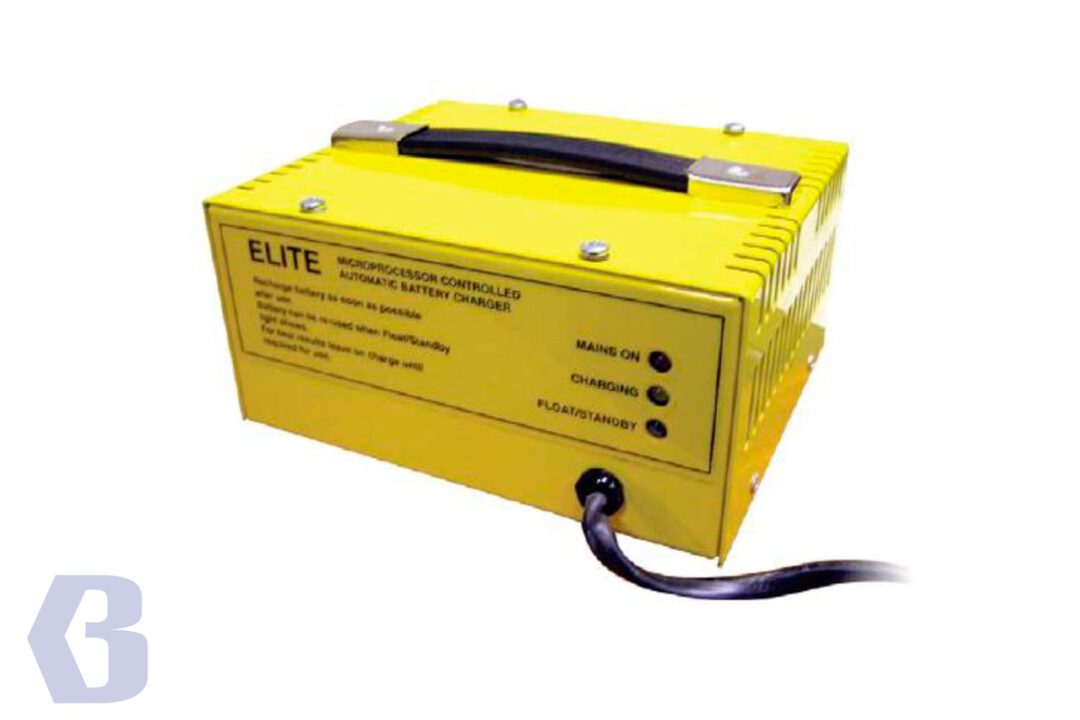

The Elite series Electrobraze Pin Brazing Battery Pack charger is designed using Pro-Duty, transformer based technology. Based around a Toroidal design giving low profile compact size and maximum durability, this charger is fully automatic and self test start up is included each time the charger is turned on. Highly accurate – Mains ‘0’ crossing – voltage measurement is incorporated in the design.
Specification:
Temperature compensation for extreme environments
Switchable 110V / 240V input
Pro-Duty rugged construction
4 stage charge cycle
Proportional timing
Overun protection
Short circuit protection
Soft start current control
3 lamp LED indication
Output 36V 2A Bulk 44.4V
Float 41.4V
Connector Neutrik Multi-pin
Weight (Kg)3.5
Price:
At request
